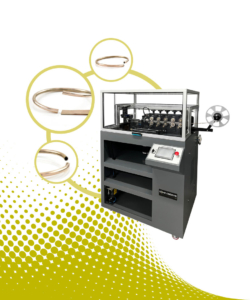

TUBO FLEX
USO CONSIGLIATO
Attraverso l’uso di questo macchinario saremo in grado di produrre in modo automatico tubo non saldato direttamente da lastra. L’uso di questo prodotto può essere impiegato nella produzione di bracciali,collane e orecchini.
CARATTERISTICHE
Il sistema è costituito da una serie di rulli che hanno la funzione di profilare la lastra da piatta a tonda. Il diametro di questo tubo viene determinato a seconda dei rulli montati. Una volta ottenuto il tubo di sezione tonda, passerà all’interno di una trafila che ha la funzione di calibrare il profilato passando poi alla fase finale cioè al motore di piegatura. La caratteristica di questo motore è quella di piegare il tubo a seconda della forma che vogliamo ottenere. Attraverso l’uso di un PLC è possibile cambiare la forma di piegatura.
MODO D’USO
Alimentazione di rete al 220V
MANUTENZIONE
Pulizia preventiva dei rulli.
DATI TECNICI
Dimensioni: 150x100x170(H) cm
Peso a vuoto: circa 310kg
Sistema di lavoro previsto: Automatico
Gestione del Lavoro: Mediante PLC
Alimentazione elettrica: 220V-50Hz-1.000kW
